KONE TRANSITMASTER™ 120

Designed for demanding people flow within transit centres

Product information

Description

The KONE TransitMaster™ 120 is a durable, eco-efficient escalator optimised for transit centers. It provides a smooth, safe ride and a pleasant passenger experience, even under the most demanding traffic conditions.

Specifications

Operational environment: indoor, semi-outdoor, full outdoor
Speed: 0.75, 0.65, 0.5 m/s; 0.4 m/s with inverter
Inclination: 27.3º, 30º, 35º
Step width: 800, 1000, 1100 mm
Vertical rise: up to 15 m

Safety

Safety is the starting point for every KONE solution. KONE TransitMaster 120 conforms to all local and international safety codes.
We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

Escalator toolbox

Helps you create detailed specifications – as well as customised CAD drawings for preliminary planning – for KONE TravelMaster 110, 115 and KONE TransitMaster 120 solutions.

Escalator Designer for TransitMaster 120

A handy tool for architects and consultants to quickly generate and print out initial dimension drawings for the KONE TransitMaster 120 escalator.

KONE TransitMaster™ 120

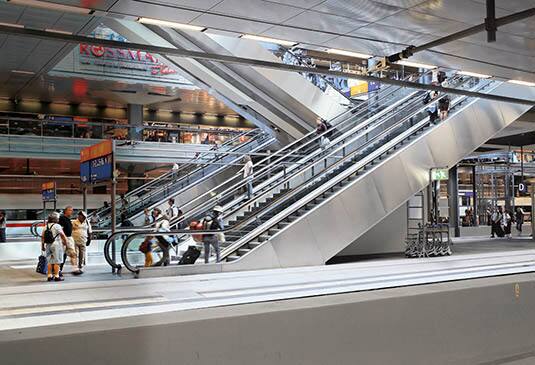

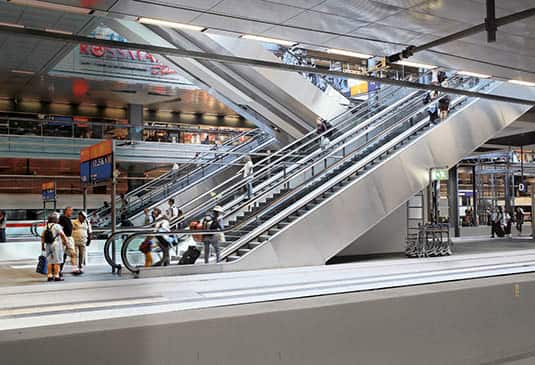

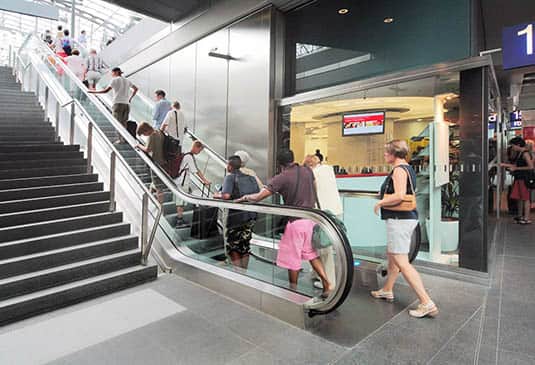

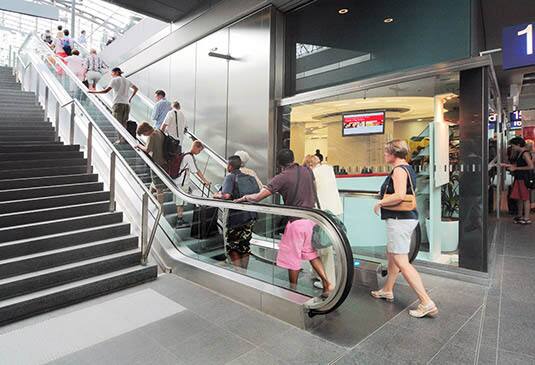

The eco-efficient KONE TransitMaster 120 escalator is designed for round-the-clock operation in environments with medium to high traffic flow, such as mass transit hubs and airports.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

KONE TransitMaster 120 Planning Dimensions

solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

Contact us

Options and highlights

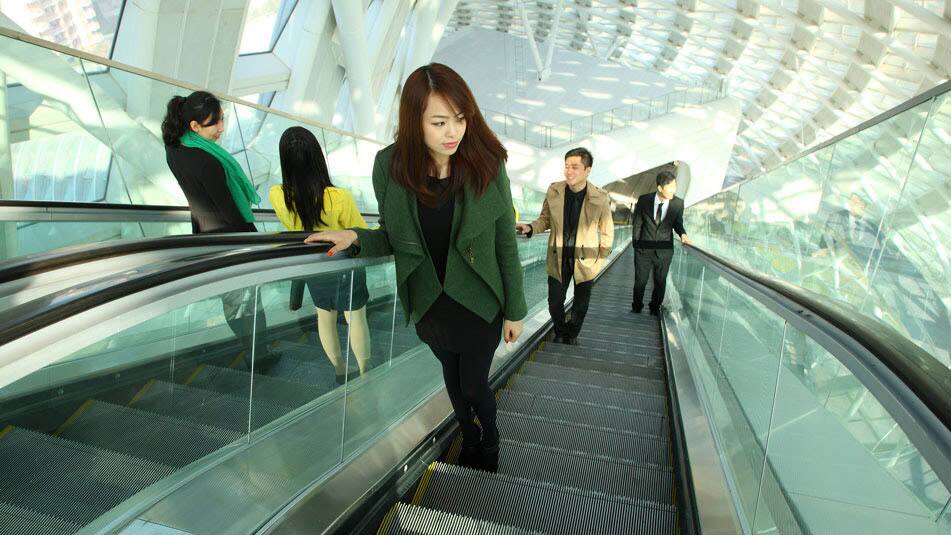

ENERGY-EFFICIENCY

Smart operational modes and inverter optimise energy consumption under different load conditions
Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
The optional KONE Direct Drive is up to 20% more energy efficient than conventional worm-gear drive solution

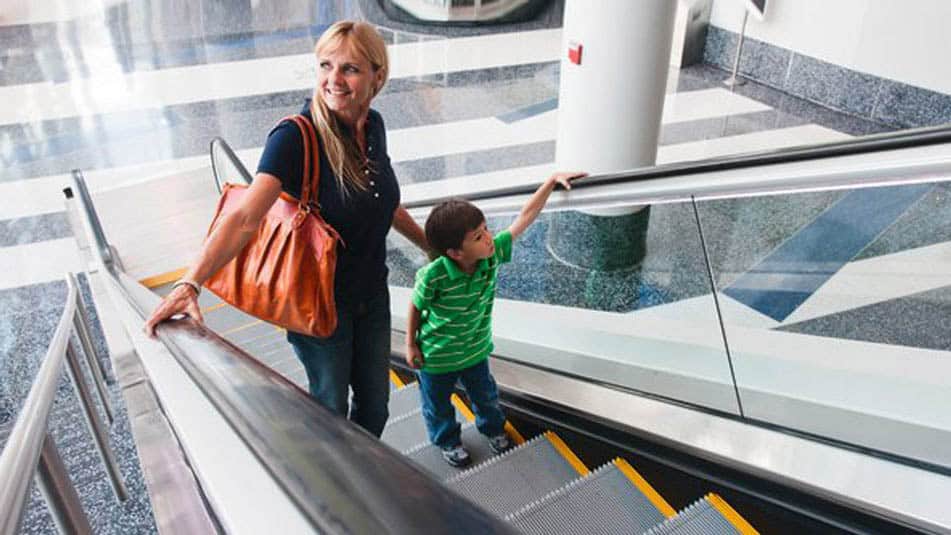

SAFETY ENHANCEMENT

In addition to the standard safety features, we offer optional safety features including:

New traffic signalisation solutions to provide extra guidance
Audible alarms provide clear guidance on escalator travel direction
Alarm for travel direction if passengers enter an escalator in the wrong direction
Fall-prevention barrier and extended balustrades provide additional passenger protection

Find out more about safety at KONE

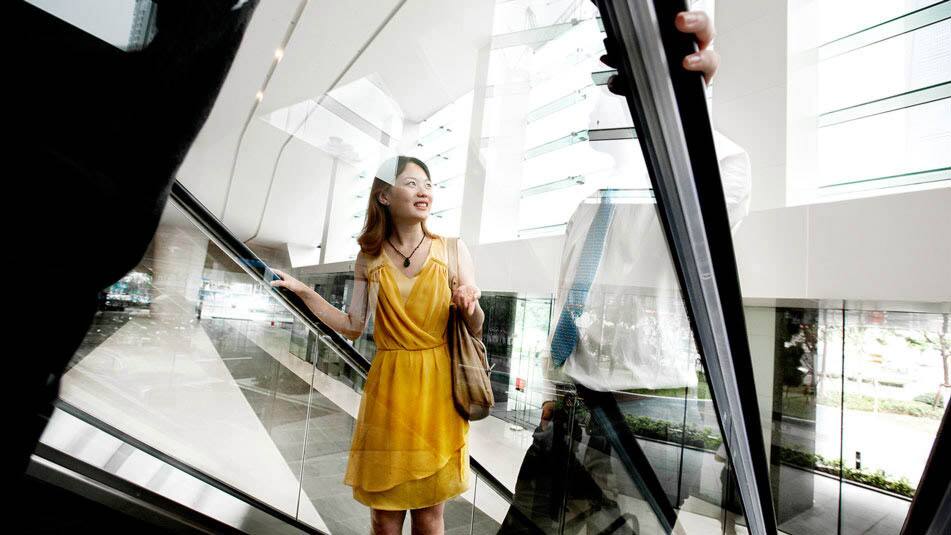

DESIGN

High quality visual design for the best possible user experience:

Innovative and attractive lighting solutions that also improve passenger guidance and safety
Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
High quality component finishes and a harmonised look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Request a quote

Product name	Description (+type)	Segment	Maximum rise	Speed	Inclination	Duty cycle	Environment
TravelMaster™ 110	escalator	Commercial, retail, hotel, office	13 m	0.4, 0.5 m/s	30°, 35°	12-16 hours/day	Indoor, outdoor, semi-outdoor
TravelMaster™ 115	Inclined autowalk	Commercial, retail, hotel, office	8 m	0.4, 0.5 m/s	10°, 11°, 12°	12-16 hours/day	Indoor, semi-outdoor
TransitMaster™ 140	escalator	Infrastructure	18 m	0.4, 0.5, 0.65, 0.75 m/s	27.3°, 30°	20-24 hours/day	Indoor, outdoor
TransitMaster™ 165	horizontal autowalk	Infrastructure	15-60 m	0.4, 0.5, 0.65, 0.75 m/s	0-6°	20-24 hours/day	Indoor, semi-outdoor
TransitMaster™ 185	horizontal autowalk	Infrastructure	15-100 m	0.4, 0.5, 0.65, 0.75 m/s	0-6°	20-24 hours/day	Indoor, semi-outdoor
